You can browse following wire drawing of motors and brakes here for technology supporting. Please follow wire drawing and read "Operation Manual" before using motors to avoid any damage.

Installation Preparation

  • Ensure correct voltage can be apply to motor before installation.
  • Check the model, model number, output, shaft direction, ratio, revolution direction are in standard.
  • Do not bend the lead wires.
  • Installation should be proceeding by trained technicians only.
  • Please refer to wire drawing when you equip motors.

WIRE DRAWING - K SERIES

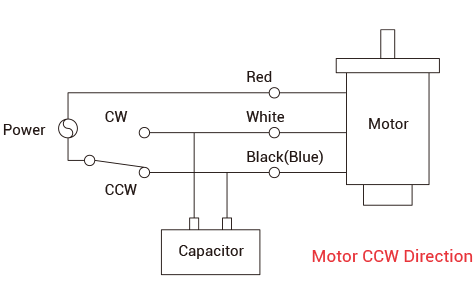

WIRE DRAWING OF SINGLE-PHASE MOTOR

proimages/technology/ac-en1.png
proimages/technology/ac-en2.png

WIRE DRAWING OF SINGLE-PHASE BRAKE MOTOR

proimages/technology/ac-en3.png

WIRE DRAWING OF 3-PHASE BRAKE MOTOR (6 WIRES)

proimages/technology/ac-en4.png
proimages/technology/ac-en5.png

WIRE DRAWING OF CLUTCH BRAKE MOTOR

proimages/technology/ac-en6.png

WIRE DRAWING- L SERIES

proimages/technology/dc-en1.png
proimages/technology/dc-en2.png
proimages/technology/dc-en3.png
proimages/technology/dc-en4.png
proimages/technology/dc-en5.png
proimages/technology/dc-en6.png
proimages/technology/dc-en7.png
proimages/technology/dc-en8.png
proimages/technology/dc-en9.png
proimages/technology/dc-en10.png
proimages/technology/dc-en11.png
proimages/technology/dc-en12.png

Controller

SS11 SS22

proimages/technology/ss-en1.png

SB31-IN SB32-IN

proimages/technology/ss-en2.png

SS31-HR SS32-HR(8PIN)

*** PIN 3, 8, 5, 4 SIGNAL INPUT

CHECK CAREFULLY BEFORE APPLYING AC

proimages/technology/ss-en3.png
